Roll-to-Roll

Coating Line

Mass Scale Coater






Mass-Scale-Coater01.jpg Mass-Scale-Coater-02.jpg Mass-Scale-Coater-03.jpg Mass-Scale-Coater-04.jpg Mass-Scale-Coater-05.jpg
Overview

An apparatus for manufacturing an electrode by applying a slurry composed of an active material, a conductive material, a binder, and a solvent to a substrate (Alor Cu) serving as a current collector of the electrode to a certain thickness (density) and drying the slurry

Characteristic
  • Adopting a method of continuous application or intermittent application depending on the method of the lithium secondary battery
  • Automatically adjust the flow rate of the slot die by correcting the thickness deviation after drying
  • Uniform production process is possible without thickness deviation
Specification
Coating Width Max. 485mm
Coating Thickness After Dry at 50 to 200㎛

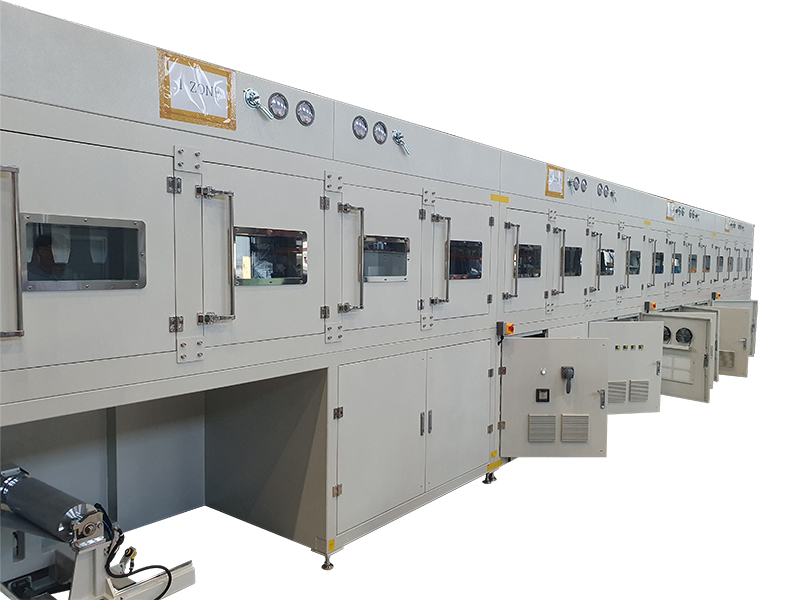

Heating Zone 3.5m x 4EA
Dimension 17,300(L) x 2,270(W) x 2,600(H) mm
Coating Mode

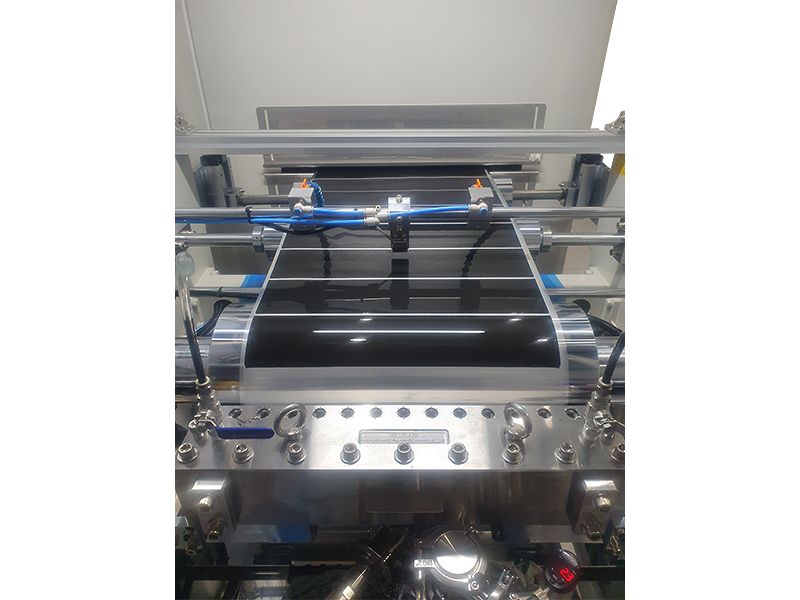

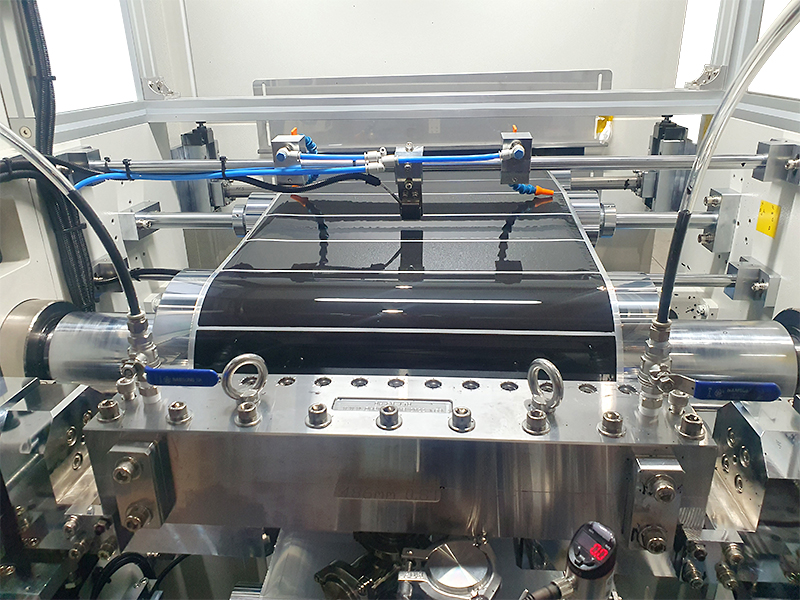

  • Slot Die

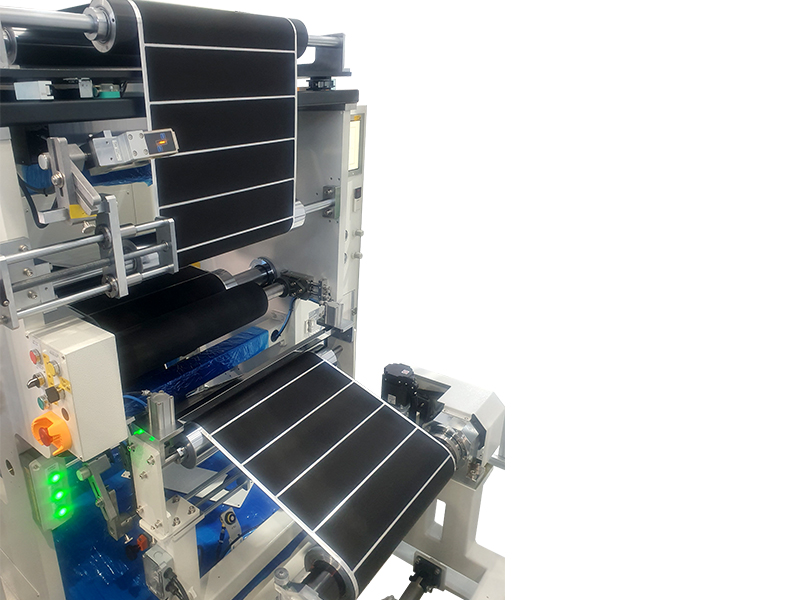

  • Continuous & Intermittent
