| Roll Size |
Φ200 x 250mm(L) |
| Foil Width |
Max. 230mm |
| Pressing Width |
Max. 200mm |
| Machine Speed |
Max. 2.0m/min |
| Pressing Speed |
Max. 1.0m/min |
| Roller Type |
Heating Roll Type |
| Heating Type |
Cartridge |
| Roller Drive |
AC Inverter Motor & Worm Reducer |
| Electrode Alignment |
Guide Plate |
| Pressing Temp. |
Max. 150℃ (Nor. 90 ~ 100℃) |
| Thickness Accuracy |
±2㎛ (After Pressing), The specification can be changed according to the slurry’s material. |
| Gap Control |
- Gap Block Type
- Lever Control (Upper Roll Up/Down)
|

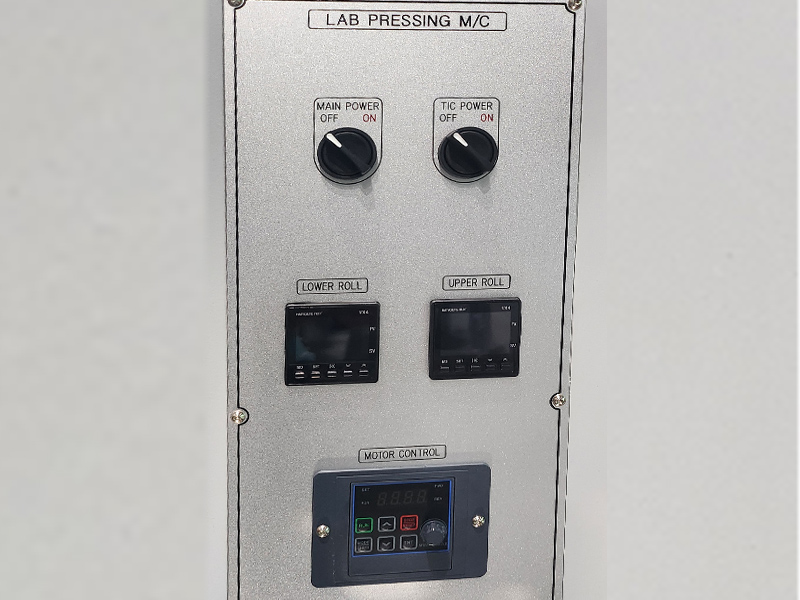

| Machine Control |
Inverter Control |
| Safety |
EMG Switch |
| Power |
AC220V, 60Hz, 3Phase, 8kW |
| Option |

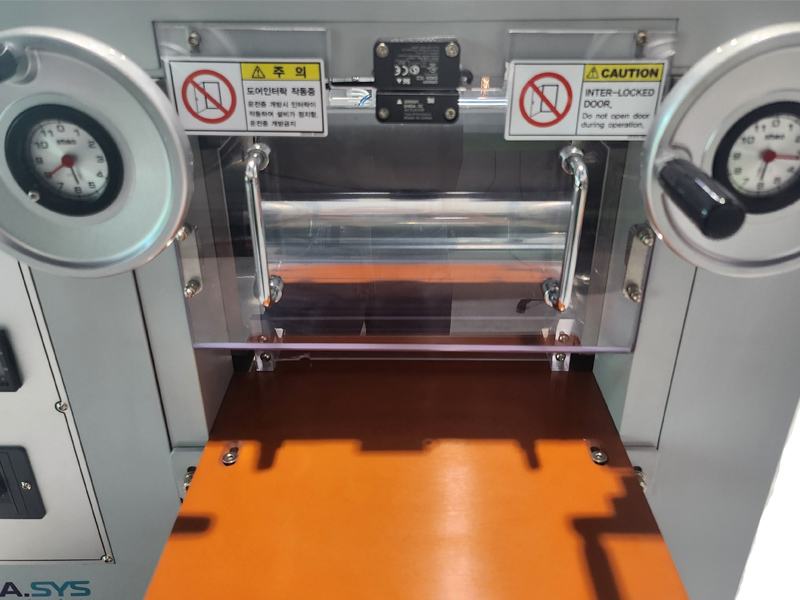

- Interlock Sensor
- Safety Cover
- Touch Display
- Load Cell
|
| Weight |
Approx. 750kg |
| Dimension |
700(W) x 800(D) x 1,450(H) (mm) |
